Automatic Shrink film packing machine

Payment:

L/C, T/T, Western Union, MoneyGram

Place of Origin:

Suzhou,China(Mainland)

Brand:

Labelong

Application:

This machine is widely used in food, beverage, medicine, audio-visual products, hardware, cosmetics, books, toys, plastic, electronics and other products.

Production capacity:

25-26pcs per minutes （500ml 4*6）

Inquiry

Write a Review

Product Description

Suitable to PE PVC film packaging.

PLC control system, automatic working.

Colorful touch-screen control panel, easy operate.

Bottle entering, Auto unscrambling bottle, Pushing bottle, Heat sealing-Saw cutting, Pressing PE, Shrink, Cooling automatically

Capacity is adjustable through adjust the convey speed

The height of the conveyor shall be made towards client’s demand, can handle 6, 9,12,15, 18, 20, 24 bottle per package

Double air blowers, guarantees the temperature balance in the shrink stove with PAD temperature controller that apparently saves energy.

The height of the conveyor shall be made towards client’s demand.

Heavy duty coated iron machine construction

It applies wing shape stainless steel heating system, which is durable for long time use.

Technical Data

Capacity	25-26pcs per minutes （500ml 4*6）
Max. product size	270650350mm
Max. packing size	600650450mm (LWH)
Working pressure	0.4-0.6Mpa
Air exhaust	60L/min
Input Power	3PH 380V 50HZ
Main Motor power	48kw
Machine size	(L)12900×(W)1350×(H)2100
Machine weight	3000kg
Film request	Transparent film
	Film width: 200-750mm
	Film thickness: 0.07-0.13mm
	Roll Film weight: ：≤440KG
Working table height	1150±50㎜ (Adjustable)

Product Video

Technical Features

Mechanical adjustment: only change the height and diameter of the bottle for about 20 minutes without changing the packaging form, and not more than 10 minutes without changing the diameter and height of the bottle and changing the packaging combination form.

Bottle-dividing group: Servo fork-type bottle-dividing is used to divide the bottles into groups according to the quantity needed for packaging, servo motor control, accurate positioning, simple and reliable debugging.

Bottle lifting cover: The lifting rod controls the movement distance of each group of bottles to synchronize with the film lifting rod, and pushes the bottle onto the belt of the film covering section; the pushing rod and the film lifting rod device are equipped with a torsion limiter, which makes the machine stop automatically when the bottle is inverted and the handwheel of the rotating limiter is reset after the breakdown is relieved.

Mechanical transmission: This machine is driven by servo motor. It adopts the combination of synchronous belt and chain transmission. The position of chain transmission is equipped with protective cover and lubrication device to ensure the safety of personnel and the cleanliness of environment.

Product Details

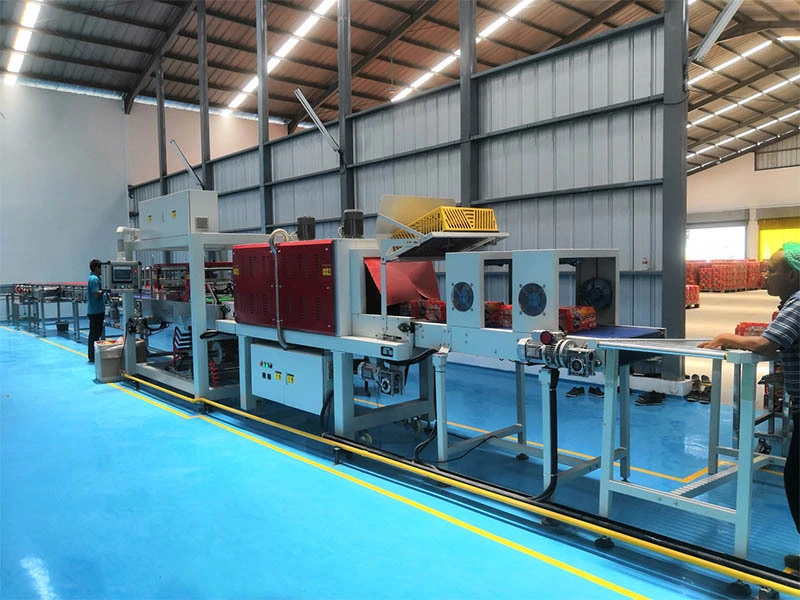

Automatic Shrink film packing machine 10

Automatic Shrink film packing machine 11
