Water Filling Machine
5.0
Payment:
L/C, T/T, Western Union, MoneyGram
Place of Origin:
Suzhou,China(Mainland)
Brand:
Labelong
Application:
Still water, pure water, RO water, mineral water, drinking water, sparkling water, alcoholic drinks, wine, etc.
Suitable for:
PET bottles
Filling system:
Gravity filling
Production capacity:
3,000BPH–36,000BPH (500ml)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description

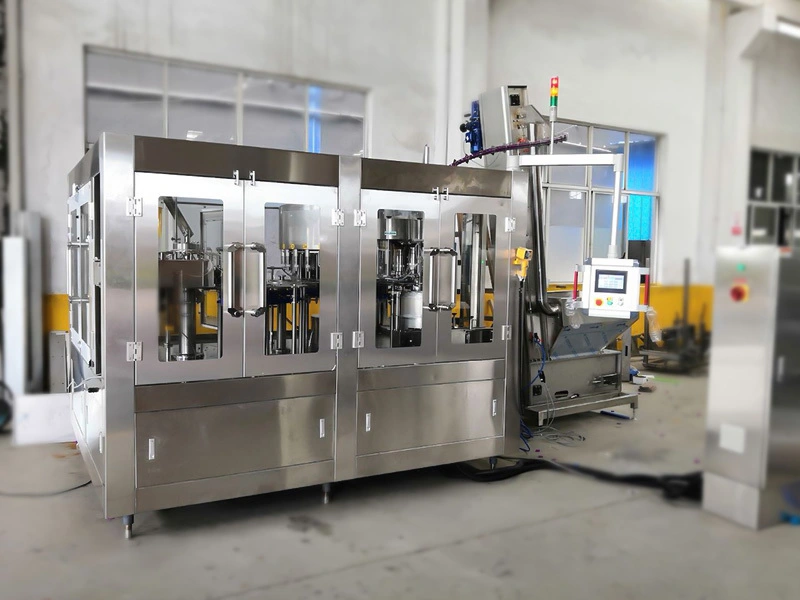

RFC-W series Water filling machine, bottle filling machine, water bottling machine are specially designed to fill non-carbonated drink
such as drinking water, pure water, mineral water, still water, flavor water, & wine in any shape 200ml to 2250ml PET bottles or glass bottles with screw caps, standard automatic 3-in-1 water filling line pressure caps or crown capping.It’s Monobloc rinser filler capper design.
Technical Data
| Model: | RFC-W14/12/5 | RFC-W16/16/5 | RFC-W24/24/8 | RFC-W32/32/10 | RFC-W40/40/12 | RFC-W50/50-15 | RFC-W60-60-15 | RFC-W72-72-18 |
| Production Capacity: 500ml(B/h) | 5000 | 8000 | 12000 | 15000 | 18000 | 22000 | 26000 | 36000 |
| Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 | 150-300 | 150-340 |
| Suitable Cap Standard: (mm) | φ25-φ50 | |||||||
| Filling Pressure: (Mpa) | 0.2-0.3 | |||||||
| Filling Model: | Gravity Constant pressure filling | |||||||
| Installed power(kw) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 | 11.37 | 11.37 |
| Overall SizeL× W× H(mm) | 2400× 1670 ×2700 | 2470× 1970 × 2700 | 2865× 2170 × 2700 | 3700× 2570 × 2700 | 3800× 2950 × 2700 | 4500× 3400 × 2700 | 5770× 5290 × 2700 | 6540× 4900 × 2700 |
| Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9500 |
Product Video
Technical Features
It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.
High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
High speed and large flow filling valve assures the high filling speed and exact fluid level.
Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.
