Can filling machine
Product Description
The combination machine for beer and beverage industry, beverage cans containing gas filling and sealing, which is in the digestion and absorption of foreign advanced beer cans filling, sealing machine independently developed on the basis of cans containing gas filling, Sealing unit the latest equipment. Filling and Sealing for the overall design of the filling system powered by Sealing system to ensure that both the absolute synchronization and coordination.

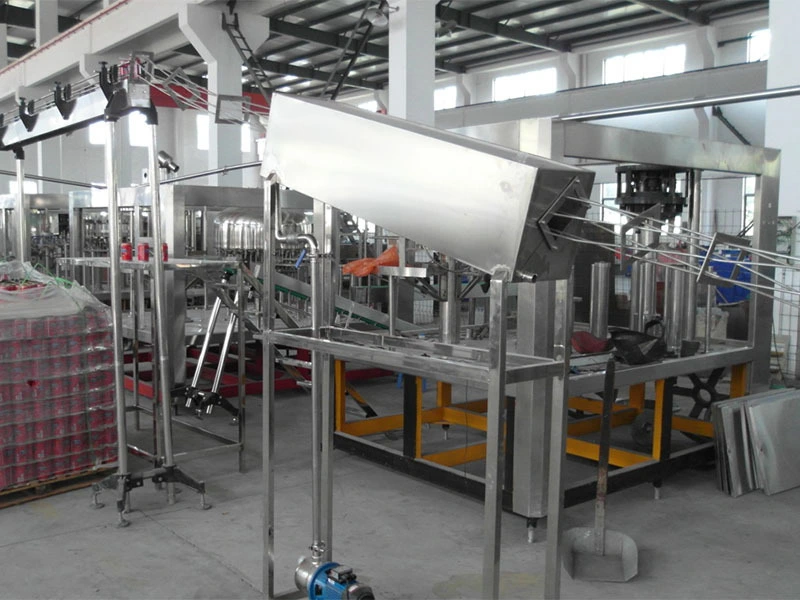

Main components of the can filling line are rinsing, filling-seaming monoblock, tunnel sterilizing machine and conveying system. The key machine is filling and seaming monoblock which synchronizes with filling machine. The liquid level is stable and the oxygen content is decreased. Through a few simple adjustments, it could handle different cans. The special structure sealing roller could be adjusted according to can’s size.
As the can is easy to get deformed, soft treatment is needed in the transferring process. The conveying system regulates the transferring speed according to the each machine’s working condition to assure no can falling or crashing occurs.
Technical Data
| Model(CFS-C) | 12-4 | 16-4 | 24-4 | 32 | |
| Production capacity(CPH) | 4000 | 6000 | 8000 | 10000 | |
| Can Available | Φ52.5-99mm H39-160mm | ||||
| Power(KW) | 5.5 | 5.5 | 7.5 | 7.5 | |
| Dimension(L*W*H)mm | 2700*1400*1900 | 2750*1750*1900 | 2750*2150*1900 | 3150*2150*1900 | |
Product Video
Product Details
