Labelong Packaging Machinery water purification systems ultra-filtration series for pure water
- Labelong Packaging adheres to the service concept to be sincere, devoted, considerate and reliable. We are dedicated to providing customers with comprehensive and quality services to meet the different needs of customers. We look forward to building win-win partnerships.
1. The quality inspection of Labelong Packaging Machinery water purification systems is strictly conducted. The performance of this product in terms of smoothness, splicing trace, cracks, and anti-fouling ability have been checked before delivery.
2. The product has the desired energy efficiency. Its mechanical components and parts are designed by adopting low energy consumption technology, featuring low energy loss in operation.
3. Labelong Packaging Machinery Co.,Ltd has the right for direct import and export.
Company Features
1. Labelong Packaging Machinery Co.,Ltd has been engaged in research and development and production of water purification systems since its establishment.
2. We have been awarded the honor of "Name Brand of China", "Advanced Export Brand", and our logo is rated with "Famous Trademark". This demonstrates our ability and credibility in this industry.
3. Labelong Packaging Machinery Co.,Ltd combines its service experience with modern management to provide customers with quality services. Please contact. Practicing the concept of water purifier is an important part for Labelong Packaging Machinery. Please contact.

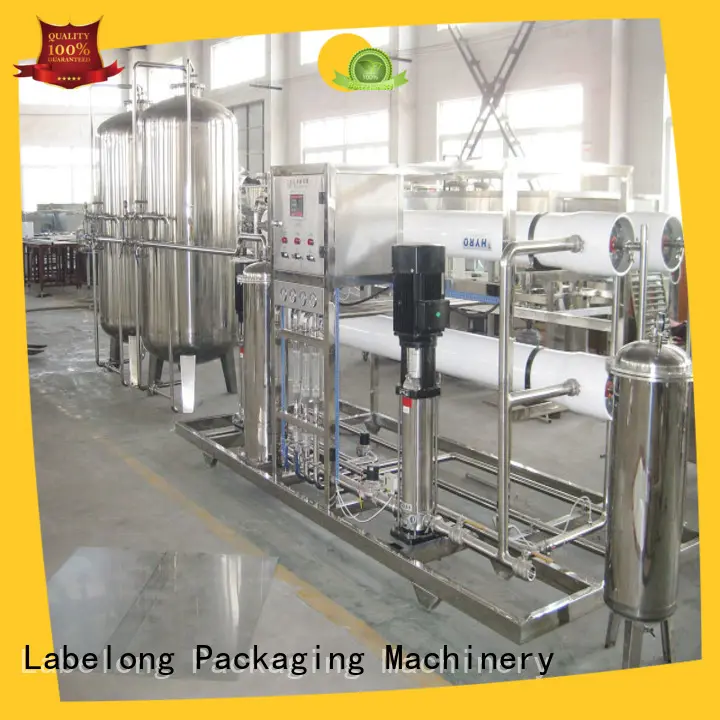

Zonetop reverse osmosis(RO) water system uses mechanical filter & active carbon as pre-filtration, which will effectively remove the suspend substance, sand particle, organic colloid,organic colloid, organic compound, odor and odd Cl2 etc; And a softener will be used to exchange the Ca or Mg hydronium from the water; Finally the RO membrane will act as pre-desalination filter, to remove large majority of dissolved salt, bacterium etc; and use ozone sterilization system and ozone fresh keeper to assure the water quality to reach our drinking water requirement.
Working Process:
RO Water Treatment System Machine Advantage:
1. Products are exported to USA,Mexico,Brazil,France,Italy,Egypt,South Africa, Vietnam,Australia,etc. and more than 40 countries all over the world
2. Supporting deeply,products diverse 3.Advance equipment,the quality is perfect
4. Professional foreign trade operations,services are more circumspect Water Treatment System Machin Specifications: 1. Quartz sand filter with S.S.304 housing and backwash valve 2. Active carbon filter and S.S.304 housing with backwash valve 3. PP sediment filter and housing
4. Hydranautics ESPA4040 RO membrane 12pcs (FILMTEC unti-pollution type RO membrane avaliable upon requirement)
5. Feed pump and high pressure pumps
6. S.S.304 piping system
7. Water flow indicator,TDS indicator, pressure indicator, control panel and switch and valve systems
RO Water Treatment process unit:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Reverse Osmosis(RO) Water Application:
1. Preparation of beverage industry, drinking pure water, natural water, mineral water, distilled water, mineral water;
2. Pure water for food factory, pure water for milk, pure water for fruit juice, pure water for food additives;
3. Pure water for preparation of blending wine produced, pure water for beer saccharification cast materials and pure water for draft beer filtration;
4. Hotels, buildings, communities, high-quality direct drinking water;
Main Technical Parameters:
Model | Flow rate (L/h) | Power(KW) | Water use efficiency | RO membrane | Dimension |
RO-500L | 500 | 1.5 | ≥ 50% | 4040 | 1650X630X1800 |
RO-750L | 750 | 2.5 | ≥ 50% | 4040 | 1870X630X1850 |
RO-1000L | 1000 | 2.5 | ≥ 50% | 4040 | 1870X650X1850 |
RO-2000L | 2000 | 3.5 | ≥ 50% | 4040 | 2440X650X1750 |
RO-3000L | 3000 | 4 | ≥ 50% | 4040 | 2440X620X1850 |
RO-5000L | 5000 | 7.5 | ≥ 50% | 8040 | 2000X900X1800 |
RO-6000L | 6000 | 9.5 | ≥ 60% | 8040 | 3000X900X1800 |
RO-8000L | 8000 | 13.5 | ≥ 60% | 8040 | 3000×900×1800 |
RO-9000L | 9000 | 14 | ≥ 60% | 8040 | 4000X900X1800 |
RO-10T | 10T/H | 19 | ≥ 60% | 8040 | 3000X900X1800 |
RO-12T | 12T/H | 19.5 | ≥ 60% | 8040 | 4000X900X1800 |
RO-15T | 15T/H | 23 | ≥ 60% | 8040 | 4000X900X1950 |
RO-20T | 20T/H | 28 | ≥ 60% | 8040 | 5000X900X1950 |
RO-30T | 30T/H | 55 | ≥ 60% | 8040 | 7000X900X1950 |
RO Water Treatment Machines (250LPH-15,000LPH)
PS:
1. Please tell us the production capacity of the ro system (250L/h, 1000L/h,2000L/h,3000L/h...) you need,
2. Source water(tap water, well water, borehole water etc.) and application of output pure water from the ro system.
We will make a plan and quotation for the ro system immediately as your requirements.
Presale service
1.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
2.We can send you the video of the running machine.provide customers the parameters and confirm necessary technical points
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
4.Show our factory to clients for checking.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2.Traning and all-around thchnical guidance for operation, commission and maintenance.
3.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
4.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
5.Twelve Months Guarantee except sparing parts. Foster long term customer and supplier relationships built on integrity, honesty and loyalty.
Foster long term customer and supplier relationships built on integrity, honesty and loyalty.
