Max PET Stretch bottle Blowing machine
Product Description

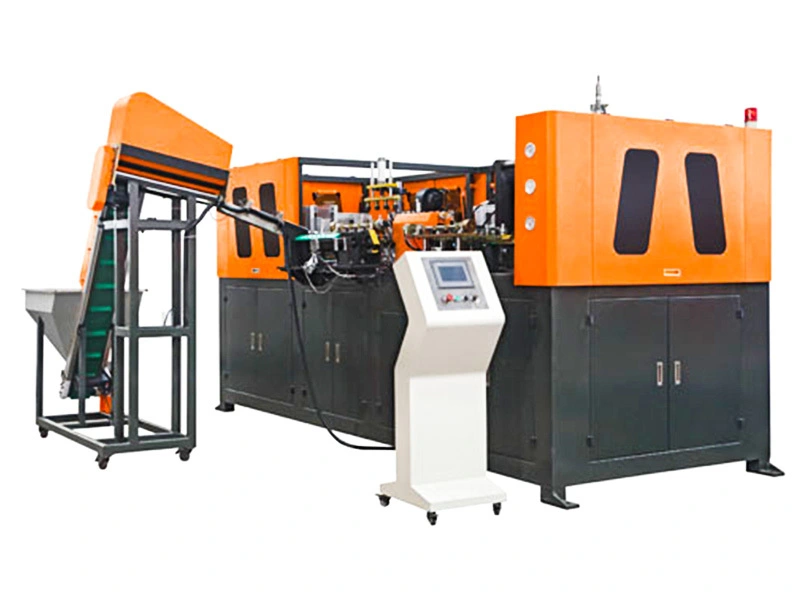

LA Series Full-automatic PET bottle blow molding machine is the most stable two-step automatic stretch blow moulding machine.
PET bottle blowing machine has two cavities to eight cavities and the maximum volume of the products is 2000ml. the speed is 1000 bottles per hour per cavity (based on 500ml bottle). PET bottle machine can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
Technical Data
| Model: | RFC-W14/12/5 | RFC-W16/16/5 | RFC-W24/24/8 | RFC-W32/32/10 | RFC-W40/40/12 | RFC-W50/50-15 | RFC-W60-60-15 | RFC-W72-72-18 |
| Production Capacity: 500ml(B/h) | 5000 | 8000 | 12000 | 15000 | 18000 | 22000 | 26000 | 36000 |
| Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 | 150-300 | 150-340 |
| Suitable Cap Standard: (mm) | φ25-φ50 | |||||||
| Filling Pressure: (Mpa) | 0.2-0.3 | |||||||
| Filling Model: | Gravity Constant pressure filling | |||||||
| Installed power(kw) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 | 11.37 | 11.37 |
| Overall SizeL× W× H(mm) | 2400× 1670 ×2700 | 2470× 1970 × 2700 | 2865× 2170 × 2700 | 3700× 2570 × 2700 | 3800× 2950 × 2700 | 4500× 3400 × 2700 | 5770× 5290 × 2700 | 6540× 4900 × 2700 |
| Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9500 |
