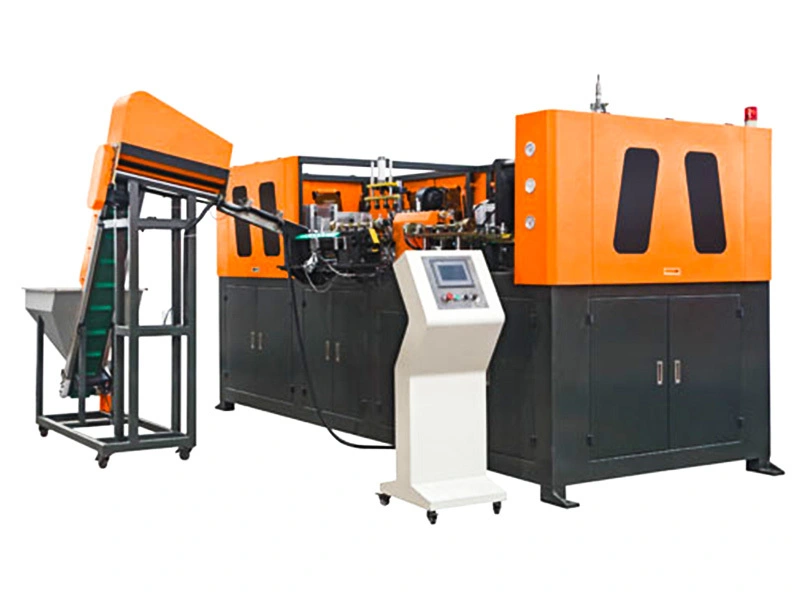

Servo motor bottle Blowing machine

Payment:

L/C, T/T, Western Union, MoneyGram

Place of Origin:

Suzhou,China(Mainland)

Brand:

Labelong

Inquiry

Write a Review

Product Description

1. The servo Series Full-automatic PET bottle blow molding machine is the most stable two-step automatic stretch blow molding machine.

2. The servo motor is adopted to drive the molding mechanism, triggering off a bottom mold linkage as well. The whole mechanism works speedy, accurately, stably and flexibly. Meanwhile, it is energy efficient and environmental safe.

3. The servo motor driven stepping system and stretching system have improved the speed, flexibility and accuracy of blowing

4. No need to equip the low pressure air compressor, it may reduce power consumption as much as 30kw per hour and minimize your investment as well as the space for placing the machine.

5. The simple slide-in way of mold mounting makes it possible for the operation to change molds easily within 30 minutes.

Technical Data

Model:	RFC-W14/12/5	RFC-W16/16/5	RFC-W24/24/8	RFC-W32/32/10	RFC-W40/40/12	RFC-W50/50-15	RFC-W60-60-15	RFC-W72-72-18
Production Capacity: 500ml(B/h)	5000	8000	12000	15000	18000	22000	26000	36000
Suitable Bottle Standard: (mm)	150-300	150-340	150-340	150-340	150-340	150-340	150-300	150-340
Suitable Cap Standard: (mm)	φ25-φ50
Filling Pressure: (Mpa)	0.2-0.3
Filling Model:	Gravity Constant pressure filling
Installed power(kw)	3.13	3.84	3.84	5.6	6.3	7.3	11.37	11.37
Overall SizeL× W× H(mm)	2400× 1670 ×2700	2470× 1970 × 2700	2865× 2170 × 2700	3700× 2570 × 2700	3800× 2950 × 2700	4500× 3400 × 2700	5770× 5290 × 2700	6540× 4900 × 2700
Total Weight: (kg)	2500	3000	4000	5000	6000	7000	8000	9500

Technical Features

The main machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.

This series is widely used for making PET bottles for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil, food, pharmacy, daily chemicall…ect

. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
