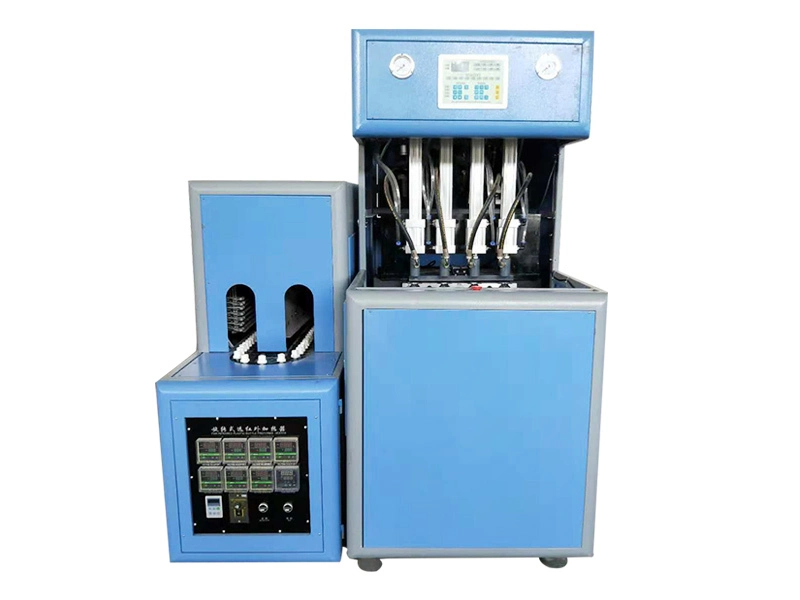

Semi-automatic 4 cavity bottle Blowing machine
5.0
Payment:
L/C, T/T, Western Union, MoneyGram
Place of Origin:
Suzhou,China(Mainland)
Brand:
Labelong
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
1.Using the new double crank four five fulcrum lever clamping structure (national patent), Cross-oriented template for balanced operation, sprockets transfer mode, the hinge parts are all inlaid with high hardness and high hardness alloy steel sleeve axis, so the large clamping force, wear-resistant, mold seams are tight and thin.
2.Overall casting frame, enhanced robustness and stability of the machine.
3.Linear guide mobile template, remove the old bearing bracket. So that friction rod and the template is greatly reduced, extending the life of the machine.
4.Dual boot work, using photoelectric safety device to prevent injuries.
Technical Data
| Theoretical output | 1200-2000pcs/h | |
| Finished bottle | Max. bottle volume | 1 .5L |
| Max. neck diameter | 38mm | |
| Max. bottle diameter | 105mm | |
| Max. bottle height | 305mm | |
| Mold specifications | Cavity | 4 cavity |
| Mold thickness | 190mm-350mm | |
| Open stroke | 160mm | |
| Electrical system | Power voltage | 380v/3Phase/50HZ |
| Installation power | 23kw | |
| Actual power consumption | 8kw | |
| Air source | Recommend air compressor | 1.2m³/min 30Kg |
| Cooling water | Recommend water chiller | 3HP |
| Blowing machine size | Length*width*height/weight | 1820*820*1760mm/1100kg |
| Heater size | Length*width*height/weight | 2170*570*1360mm/450kg |
Technical Features
Energy-saving design allows you to generate greater efficiency.
Unique way to put preforms and bottles to take a one-way function, making the place, take two crisp action, increase production.
Isolated gas control system to prevent pollution emissions to achieve health inspection standards.
Front and rear head (stretching cylinder), the left-right direction, parallel to the adjustment method are used to make the mold installation easier and faster.
