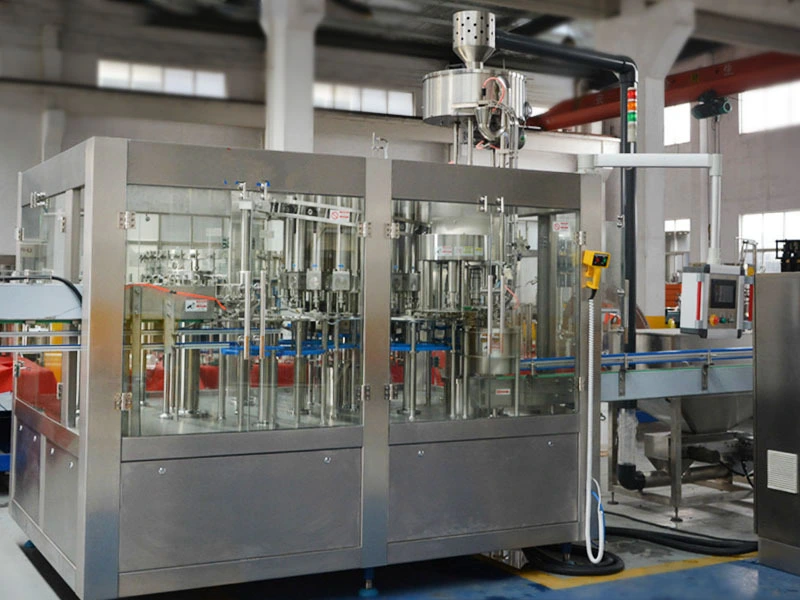

RFC-H series filling machines
5.0
Payment:
L/C, T/T, Western Union, MoneyGram
Place of Origin:
Suzhou,China(Mainland)
Brand:
Labelong
Application:
juice,milk,vitamindrinks,functionalbeveragewithparticles,flesh,pulp,fruitpiecesetc.
Suitable for:
PET bottles/Glass bottles
Filling system:
Gravity filling
Production capacity:
2,000BPH–26,000BPH (500ml)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
RFC-H series filling machines are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 26000BPH, it adopts the pressure & rotative filling style.
Technical Data
| Model: | RFC-H14/12/5 | RFC-H16/16/5 | RFC-H24/24/8 | RFC-H32/32/10 | RFC-H40/40/12 | RFC-H50/50-15 |
| Production Capacity:500ml(B/h) | 5000 | 8000 | 12000 | 15000 | 18000 | 22000 |
| Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard:(mm) | φ25-φ50 | |||||
| Filling Pressure:(Mpa) | 0.2-0.3 | |||||
| Filling Model: | Gravity filling with back flow system | |||||
| Installed power(kw) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
| Overall SizeL×W×H(mm) | 2400×1670×2700 | 2470×1970×2700 | 2865×2170×2700 | 3700×2570×2700 | 3800×2950×2700 | 4500×3400×2700 |
| Total Weight:(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
Product Video
Technical Features
Centre filling valves used which are designed for maximum flow rate and minimum bottle distortion during HOT filling.
Inbuilt CIP arrangement provided on the machine for fill tank and fill valve sanitation.
Dummy caps provided fitting on all filling valves during CIP.
Automatic PLC controlled valve washing cycle before commencement of every production cycle for overall hygiene.
Unique filling cam designs which prevents filling up to the bottle collar without spillage.
Bypass line provided for flushing the product fill tank after completion of CIP
