water purification systems filter corefor beverage’s water
- Labelong Packaging constantly improves the service system and creates a healthy and excellent service structure.
-
v s
1. The design of Labelong Packaging Machinery water purification systems complies with the most demanding requirements. It is carried out by our designers who take some factors into considerations, such as aesthetics, practicality, and acoustics.
2. This product has good strength. Various types of load and stresses caused by the load are analyzed for choosing the best structure and materials for its strength.
3. The product is not prone to high vibration environment. Thanks to its heavy-duty construction, it can effectively resist any kind of impact.
4. Labelong Packaging Machinery tries and keeps our prices as low as possible.
Company Features
1. Labelong Packaging Machinery Co.,Ltd will still outstrip the market sales of other similar suppliers.
2. Labelong Packaging Machinery Co.,Ltd has attracted and nurtured a large number of senior technical management elites in water purification systems industry.
3. We will continually strive to be environmentally responsible and support the communities where we operate and the industries in which we participate. Please contact. Our responsibility to the environment is clear. Throughout the entire production processes, we will consume as little materials and energy such as electricity as possible, as well as increase the recyclability rate of the products. Please contact.

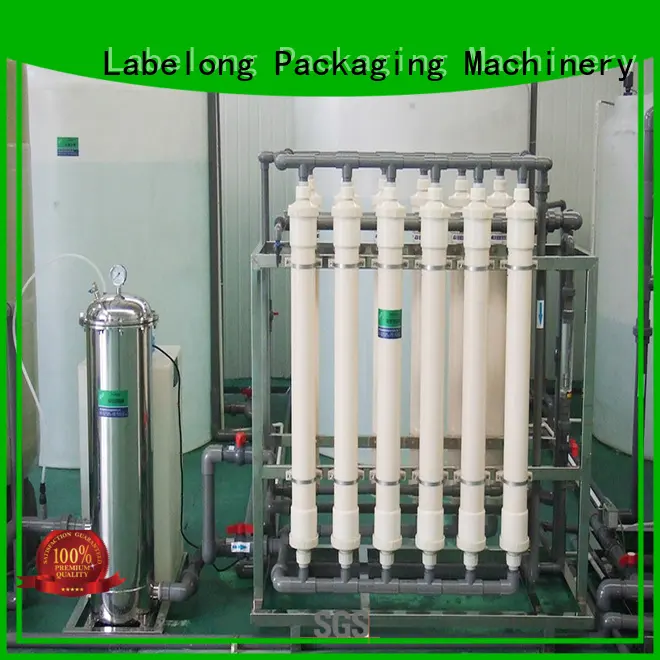

Ro drinking water system Features:
1)Our company's RO reverse osmosis equipment adopts key components, equipment adopts imported brand
2)advanced technology, reliable quality, strong expandability, reasonable structure and small area
3)high water utilization rate, low energy consumption, fully automated operation, simple operation and maintenance .
3)According to user requirements design and manufacture of reverse osmosis system,
4)The general production limit of 0.25m3/hr, the upper limit is not limited, the water recovery rate can reach more than 75%, salt rejection rate> 98%.
5)The amount of water produced varies with the temperature of the incoming water and the aging or contamination of the reverse osmosis membrane.
Reverse osmosi system Structure
♦ RO water treatment technology is the most advanced and energy-saving membrane separation tchnology.
♦ Water pressure (higher than the osmotic pressure of the solution) is used to force water molecules go through a very fine membrane, leaving the contaminants behind.
♦ Ro system can remove salt and most of the organisms and microorganisms which exist in the water (removal can reach 97%-98%).
Ro drinking water system Flow chart:
Ro drinking water system Technical Parameters:
| Model | Water production(m3/hr) | Power(kw) | Dimension L*W*H(mm) | Weight(kg) |
| RO-0.5 | 0.5 | 1.1 | 1300*600*1400 | 100 |
| RO-1.0 | 1 | 1 | 1300*600*1400 | 100 |
| RO-1.5 | 1.5 | 1.5 | 1300*600*1400 | 150 |
| RO-2.0 | 2 | 2.2 | 1400*600*1400 | 200 |
| RO-2.5 | 2.5 | 3 | 1400*600*1400 | 200 |
| RO-3.0 | 3 | 3 | 1600*750*1750 | 200 |
| RO-4.0 | 4 | 3.7 | 2600*750*1750 | 250 |
| RO-5.0 | 5 | 5.5 | 2600*750*1750 | 300 |
| RO-6.0 | 6 | 5.5 | 2600*750*1750 | 500 |
| RO-7.0 | 7 | 7.5 | 2800*800*1850 | 550 |
| RO-8.0 | 8 | 11 | 2800*800*1850 | 600 |
| RO-9.0 | 9 | 11 | 2800*800*1850 | 650 |
| RO-10.0 | 10 | 11 | 3000*800*2000 | 650 |
| RO-15.0 | 15 | 15 | 3000*1250*2000 | 900 |
Name: Reverse osmosis membrane Raw water with higher salt content |
| Name: Multi-media filter Brand: QILEE Original: China Suspended impurities in the water, such as quartz sand and anthracite, so that the water can obtain a clear process. The porous material used for filtration is called filter material, and quartz sand is the most common filter material. |
Name: Multi-media filter Brand: QILEE Original: China The exchangers installed in the ion exchangers are in a fixed position during the exchange process. Such ion exchangers are called fixed beds, and the raw water exchange treatment and resin egeneration after failure are carried out in the same exchanger at different times. |
