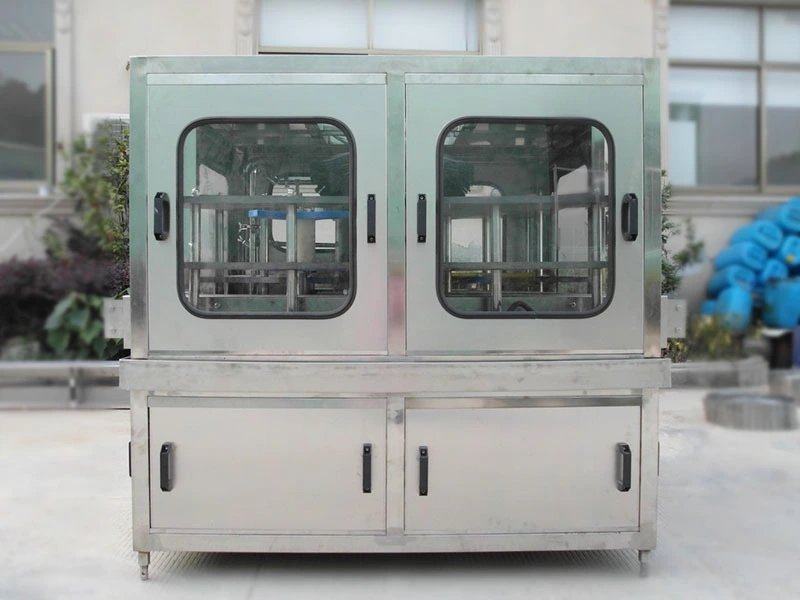

WFC series 5 gallon filling machine
5.0
Payment:
L/C, T/T, Western Union, MoneyGram
Place of Origin:
Suzhou,China(Mainland)
Brand:
Labelong
Application:
still water, pure water, drinking water, mineral water etc.
Suitable for:
3 gallon, 4 gallon and 5 gallon bottles
Filling system:
Gravity filling
Production capacity:
120BPH– 2,000BPH (5 gallon)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Equipment structure. of 5 gallon water filling machine
Automatic bottle loader
Barrel rinser
Filler
Capper
According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.
Technical Data
| Model | WGF-150 | WGF-300 | WGF-450 | WGF-600 | WGF-900 | WGF-1200 |
|
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 | |
| volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | |
| Barrel size(mm) | φ 270×490 | φ 270×490 | φ 270×490 | φ 270×490 | φ 270×490 | φ 270×490 | |
| Capacity(b/n) | 100-150 | 250-350 | 400-450 | 550-600 | 800-1000 | 1000-1200 | |
| Gas consumption(m 3 /min) | 0.37 | 0.6 | 0.8 | 1 | 1.4 | 1.8 | |
| Motor power(kw) | 1.38 | 3.8 | 3.8 | 7.5 | 10.5 | 13.5 | |
| Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3800 | 4500 | |
Product Video
Technical Features
The machine integrates rinser, filler and capper together.
The machine is of stainless steel, resisting corrosion and easy to clean.
The main electrical components and gas circuit elements are all of international brand
